LH-VOC-RTO

Short Description:

LH-VOC-RTO Regenerative Thermal Oxidizer (RTO) is a kind of organic waste gas treatment equipment that combines high temperature oxidation and heat storage technology. This equipment effectively reduces heat loss and energy consumption resources, and at the same time greatly reduces the exhaust temperature of the purified gas.


Product Detail

Product Tags

Product detail

Purpose and scope

RTO is suitable for organic waste gas treatment in automobile and machinery manufacturing, coating lines and drying rooms; electronic manufacturing, printed circuit board (PCB) organic waste gas treatment; electrical manufacturing, enameled wire insulation organic waste gas treatment; light industry, shoe-making glue organic waste gas treatment; printing and color printing organic waste gas treatment.

It is suitable for the treatment of organic waste gas in the metallurgical steel industry and carbon electrode production; the treatment of organic waste gas in the chemical industry and chemical synthesis process (ABS synthesis).

It is suitable for various places where organic waste gas is generated such as organic waste gas in petroleum refining and chemical process.



Principle of operation

Before the exhaust gas treatment of the furnace body, the combustion chamber and the regenerative bed are preheated; after the preheating is completed, the exhaust gas source is connected to the equipment. The organic waste gas is firstly heat exchanged by the preheated heat storage ceramic body 1 under the action of the supporting fan. The waste gas enters the heating zone after a temperature increase. In the heating zone, the exhaust gas is heated for the second time. After the reaction temperature is required, it enters the catalytic chamber for reaction, generates carbon dioxide and water and discharges and releases heat energy; the treated clean gas passes through the heat storage ceramic body 2 for heat storage and is discharged by the fan. When the temperature is detected by the temperature measuring rod at the inlet of the exhaust fan and the set temperature is reached, the valve is switched from the heat storage ceramic body 2 to the exhaust gas, and the heat storage ceramic body 1 is discharged, and the cycle repeats.

RTO lc3RTO

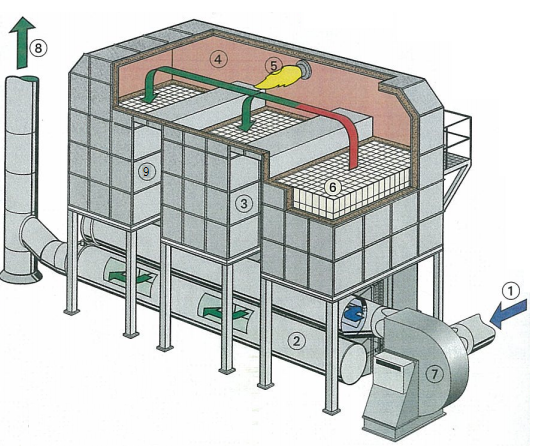

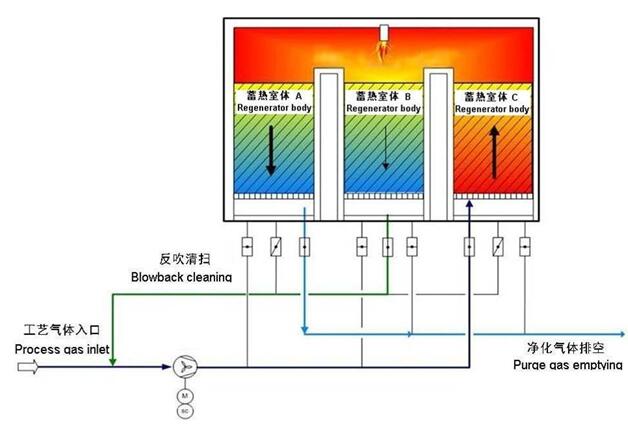

3-Chamber RTO  process flow chart

RTO1RTO2

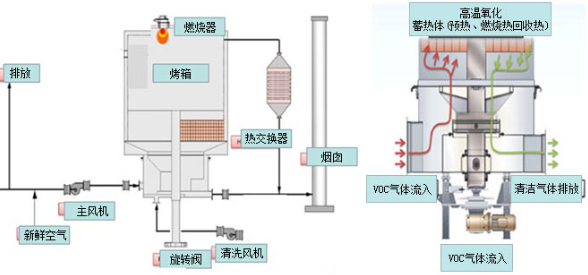

 Rotary RTO process flow chart



Technical characteristics

1. It adopts the alternate switching technology of preheating and heat storage to make it have a higher heat exchange efficiency, the efficiency is as high as 90-95% or more, and the energy saving performance is remarkable.

2. The burner is used for heating, which can realize the proportional adjustment function of high and low power operation, and has the functions of pre-cleaning, flameout protection, over-temperature alarm and automatic fuel supply cut off; the operation is safe, reliable, efficient and durable.

3. It adopts microcomputer automatic control and multi-point temperature control to realize multiple protection actions, operation information retrieval, and monitoring information feedback, so that the system can operate safely, stably and reliably.

4. The valve adopts a pneumatic transmission mechanism, which is more sensitive and quicker than the electric transmission mechanism.

5. The gas discharged through the incineration system has a low concentration of substances: VOC<120mg/Nm³, CO<100 mg/Nm³, NOx<100 mg/Nm³.



How do we select right equipment ?

Specifications

 and Models

LH-VOC-RTO-

3000

LH-VOC-RTO-

5000

LH-VOC-RTO-

10000

LH-VOC-RTO-

15000

LH-VOC-RTO-

20000

LH-VOC-RTO-

30000

LH-VOC-RTO-

40000

LH-VOC-RTO-

50000

LH-VOC-RTO-

60000

Treatment air flow

 m³/h

3000

5000

10000

15000

20000

30000

40000

50000

60000

Organic gas

 concentration

100~8000mg/m³(mixture

Type of

Organic gas

Triphenyl , alcohol, ether, aldehyde, phenol, ketone, ester and other VOC; malodorous gas, etc.

Regenerator heat

recovery efficiency

95%

Purification efficiency

98-99%

Equipment size

Lengthmm

6280

6280

8375

9690

10600

14265

15180

16095

17925

Widthmm

1550

1880

2135

2440

2745

2745

3050

3660

3660

Heightmm

5000

5600

5600

6000

6500

7000

7000

7500

7500

Maximum output heat value of burnerkcal/h

14×10

25×10

25×10

60×10

100×10

100×10

120×10

200×10

200×10

Fuel consumption

initial

Maximum output of burner

normal operation

Determined according to the exhaust gas concentration, when the concentration is above 1600~2000mg/Nm³, RTO can maintain spontaneous combustion

Bed Pressure Drop

3500Pa

Note:

1. Other air volume specifications can be designed separately.

2. If there is a requirement for fuel, please specify when ordering.

3. Use two-chamber or three-chamber or rotary RTO according to user investment and equipment purification efficiency.



Project case

RTO project

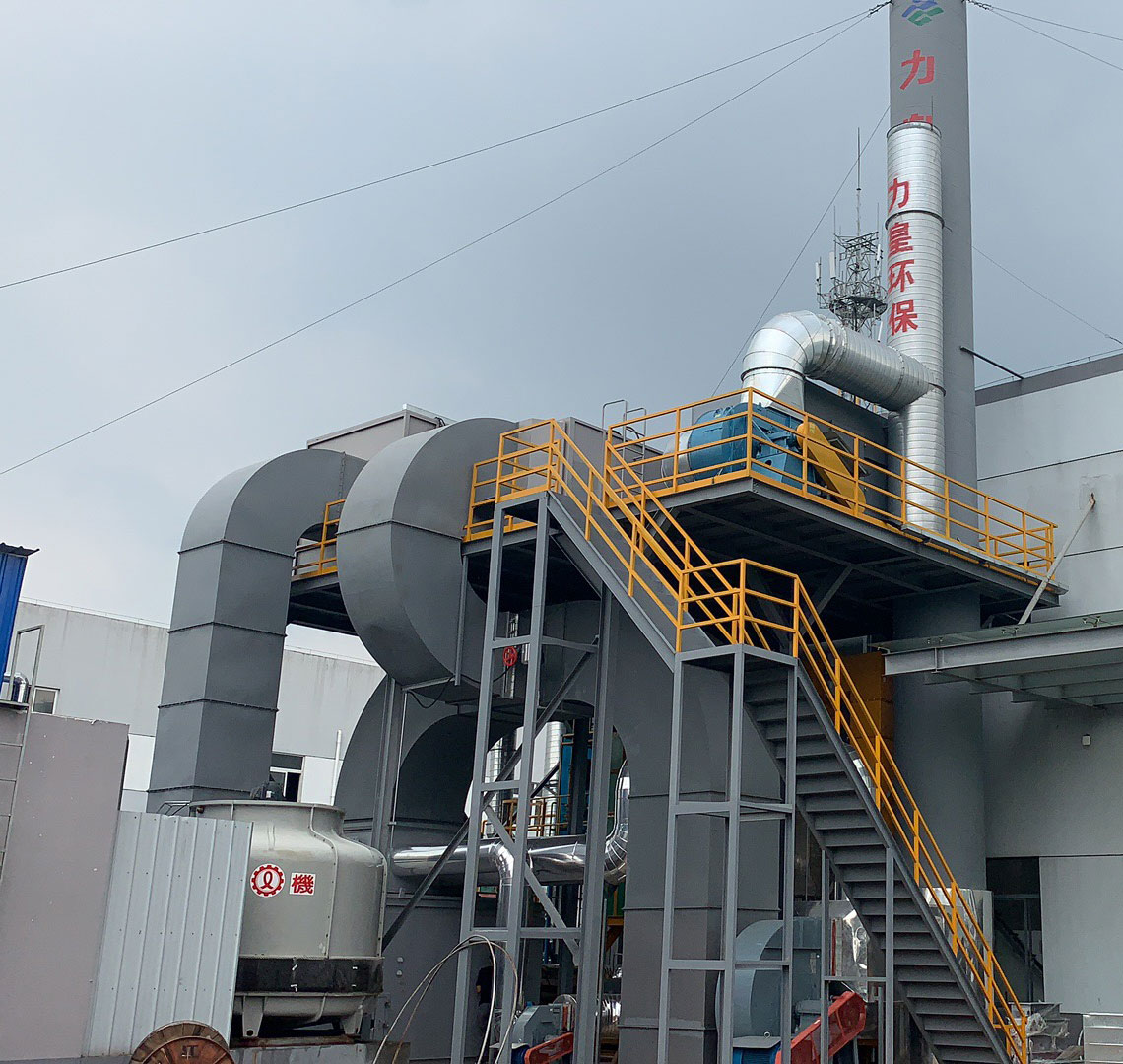

The exhaust gas born by X auto parts manufacturing company is 50,000 m³/h, and the voc concentration is about 200-300mg/m³. For this kind of high-volume and low-concentration organic waste gas, We DHDZ and LH uses filtration + UV pretreatment + concentrated drum + rotating RTO technology to qualify the waste gas!  Workshop waste gas is collected through pipes for dust removal and filtration, then pre-treated, and then passed through the runner After adsorption, discharge up to the standard.

Filtration + pretreatment + rotating drum + rotating RTO waste gas treatment process has the characteristics of stable and reliable operation and high degree of automation. After the equipment is turned on, it can be unattended. And the whole equipment is interlocked with the workshop production line control system to flexibly adjust the start and stop time, without additional manual operation. It is the preferred process for the treatment of exhaust gas from spraying companies!
